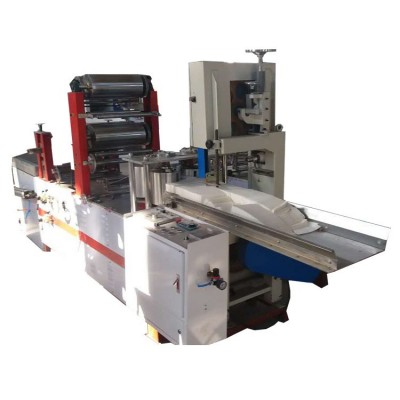

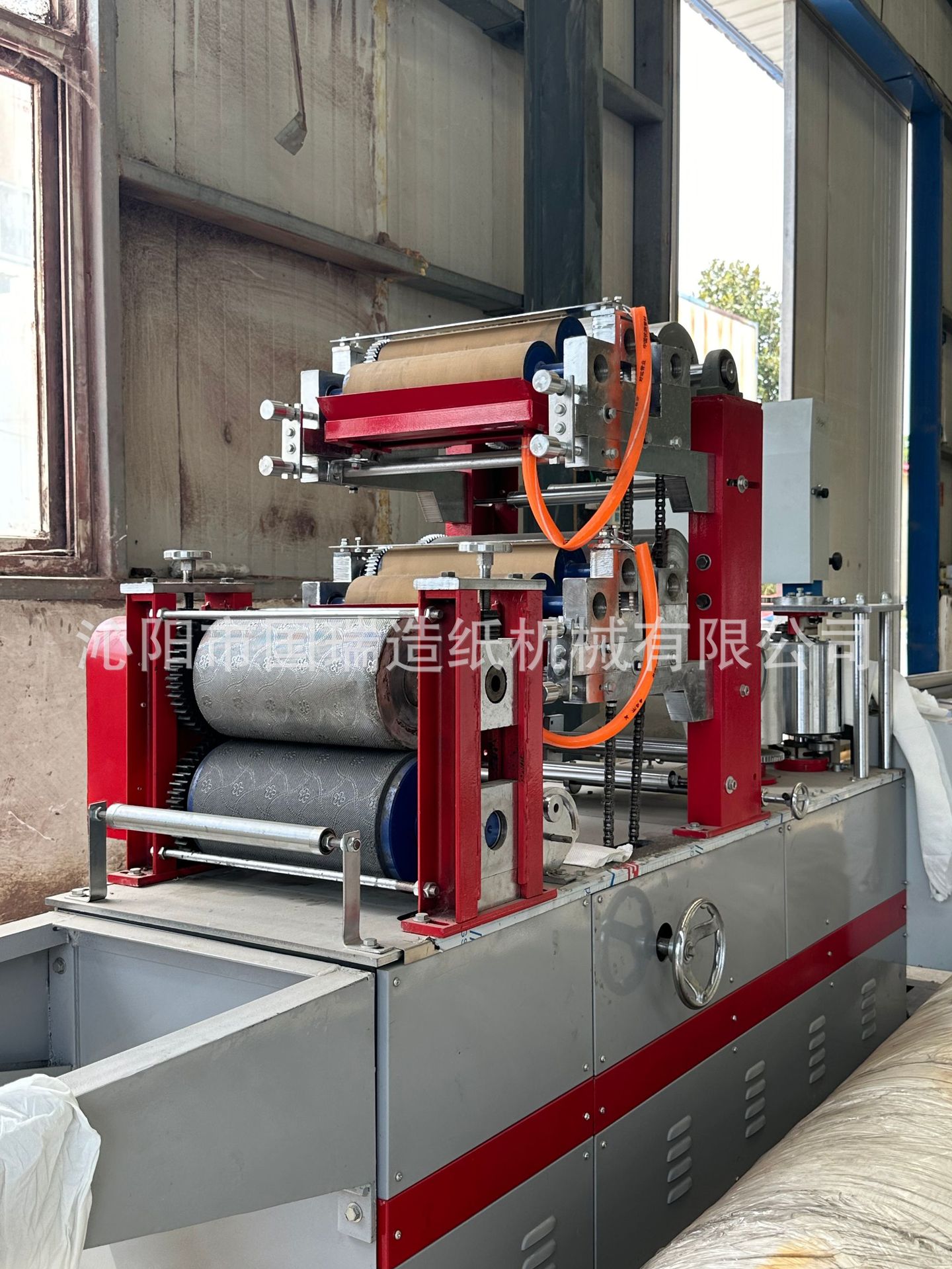

餐巾纸折叠压花机
Napkin folding and embossing machine
产品描述
Product description
JX-A 高速餐巾纸机用于将原料盘纸经压花、折叠、电子计数、裁切加工成正方形的餐巾纸，生产过程中自动压花折叠，无须人工折叠，另餐巾纸的花型可根据用户需要制作各种不同清渐美观的花纹图案。
JX-A high speed machine is used tor raw plate paper napkin after embossing,processing. Electronic counting in to a square napkin ,in the production process of automatic embossing without manual folding ,folding,flower type other napkins according to the flower pattern of users need to make different clear beautiful.
产品特点
Product features
1、自动计数，分位整列，方便包装。
2、生产速度快，噪音小，适合家庭式生产。
3、可根据用户要求制造各种不同规格产品的机型。
4、可增加同步输送、自动上纸功能和断纸自动停机功能，安全性更高，生产速度更快(需定制)。
1. Automatic counting and sorting in positions for convenient packaging.
2. Fast production speed and low noise, suitable for family-style production.
3. Models that can produce various products of different specifications according to user requirements.
4.Synchronous conveying, automatic paper feeding function and automatic shutdown function in case of paper breakage can be added, with higher safety and faster production speed (customization required).
技术参数
Technical parameters
机器型号 Machine Model | JX---A |
成品尺寸 Finished Size | 240mm×240mm－250mm×250mm |
原纸尺寸 Paper Size | ≦Φ1300mm |
原纸芯内径 Original Core inner dia | 75mm标准（其他规格请指定）Standard(Other size are available) |
压花底辊 Embossing Roller end | 胶辊、羊毛辊、钢对钢Cots,wool roll,Steel to steel |
技术系统 Counting System | 电子计数 Electronic Counting |
动力 Power | 4-8KW |
外形尺寸 Dimensions | 2500mm×1200mm×1800mm |
机器重量 Wight | 1000KG |
速度 Speed | 0－900张/分钟 0－900Sheets/minute |
选配项（需订购）Optional items (need to order) | 自动上纸、同步输送、印刷 Automatic paper feeding ,synchronous conveying |
使用动力 Use of power | 变频调数，电磁调速 Frequency Control,electyomagnetic governor |
成品样品图
Finished Product Sample Images

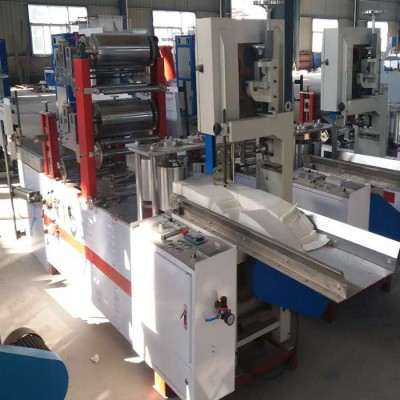

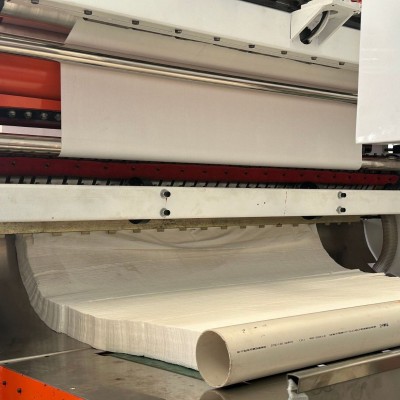

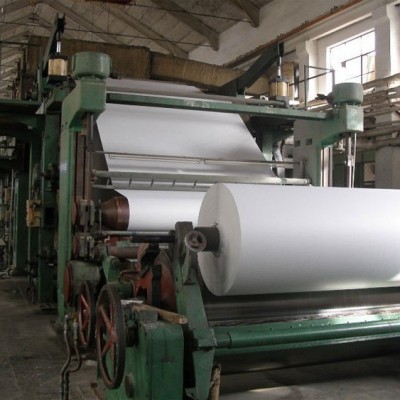

其他产品
Other products

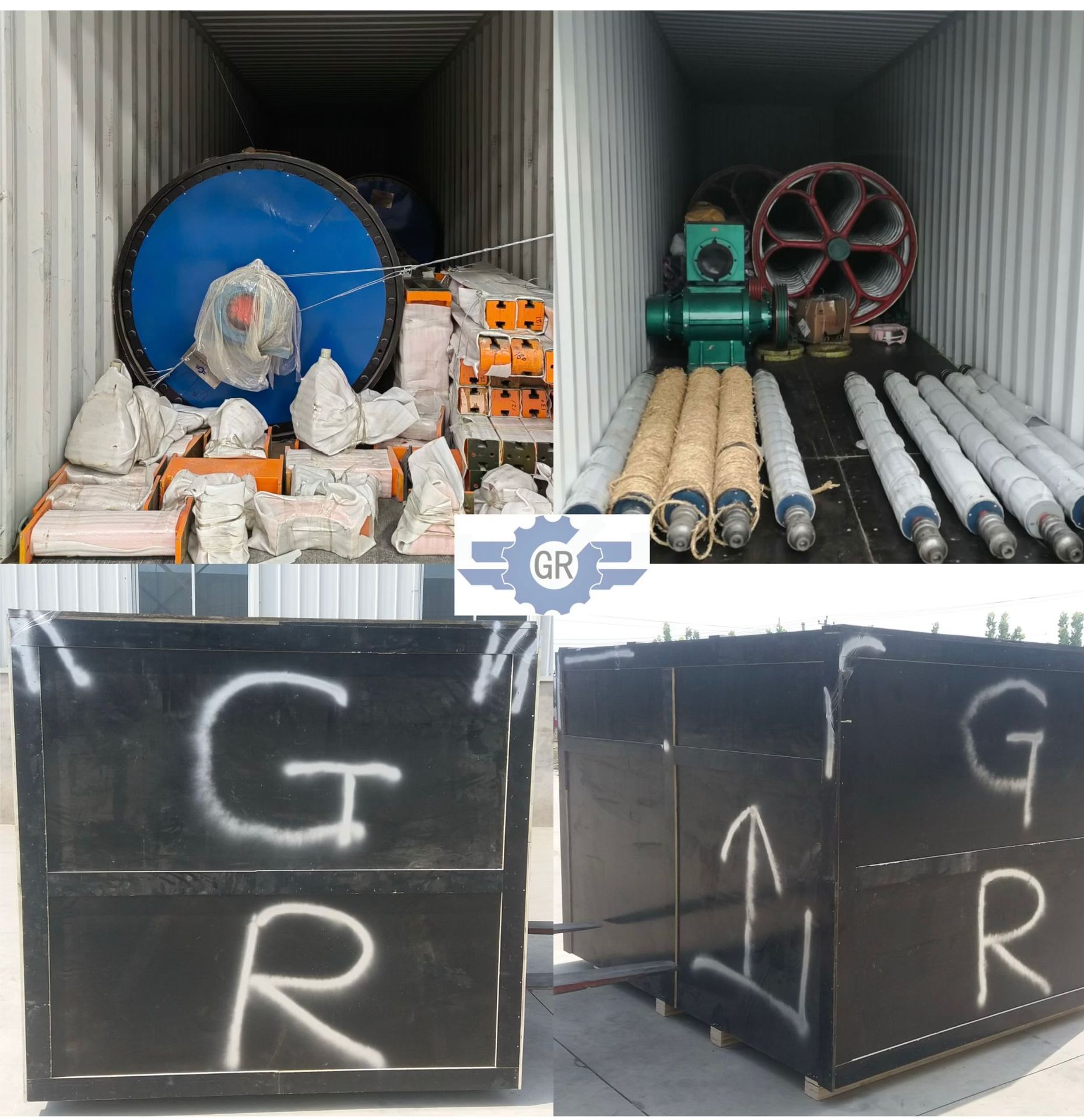

工厂包装
Factory package
1.木质包装;
2.标准出口包装;
3.根据客户的要求。
1. Wood packaging;
2. Standard export packaging;
3. According to customer requirements.
