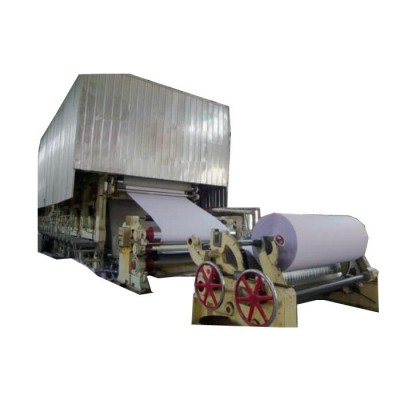

2400文化纸生产线
2400 Cultural Paper Production Line
第一部分：设备基本技术参数
Part one: The basic technical parameter
1. 型号: 2400型文化纸造纸机
Item: 2400 Culture Paper Making Machine
2. 抄造品种: 电脑打印纸
Output paper: Cope paper; Writing paper
3. 抄造定量(g/m²): 70-90g/m²
Gram weight(g/m²):70-90g/m²
4. 净纸宽度 (mm): 2400mm
Net paper width (mm): 2400mm
5. 设计车速 (m/min): 120m/min
Design work speed (m/min): 120m/min
6. 工作车速(m/min): 60--100m/min
Work speed (m/min): 60--100m/min
7. 生产能力(t/d): 25.0t/d
Daily capacity (t/d): 25.0t/d
8. 传动方式: 交流变频，分部传动
Drive way: AC variable frequency, section drive
9. 机型设计: 方箱型结构，分左右手机
Model design: Box structure, operation by left or right hand
10. 上浆方式: 开启式流浆箱
Sizing way: Open-type headbox
11. 适用毛毯: 普化纤平织毛毯
Matched felt: Normal Chemical fiber woven felt
12. 成型网形式: 铜绕线式
Forming wire type: Copper wound-rotor
13. 结构布局: 单层
Structural layout: Monolayer
14. 适用电源（v, HZ）: 220, 380伏/50~60HZ
Power (v, HZ): 220, 380v/50~60HZ
15. 气动介质: 压缩空气0.6MPa 3级工业压缩空气标准
Pneumatic medium: Compressed air, 0.6 MPa, level 3 industrial compressed air standards
16. 适用蒸汽: 0.3MPa
Steam: 0.3MPa
17. 水质标准: PH-7总碱度（以 CaCO3计 mg/L）≤350
Water quality standard: PH-7, total alkalinity（take CaCO3 as example, mg/L）≤350
18. 使用原料: 木浆，废纸，秸秆等
Raw material: wood pulp,waste paper,straw etc.
第二部分：纸机主要构成部分
Part two: Main Equipment of Paper Machine
流浆箱部---长网成型部---压榨部---干燥部---施胶部---缸组干燥部---压光机---卷纸机---复卷纸
Headbox section---Fourdrinier forming section---Press section---Dryer section---Sizing section---Dryer group section---Calander---Reeling machine---Rewinder

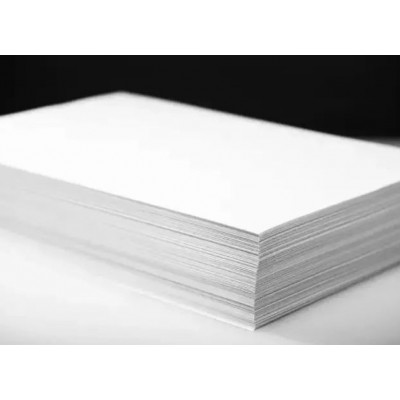

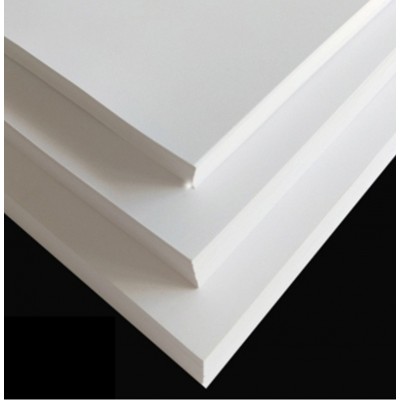

第三部分：纸张样品图
Part three: Output paper samples

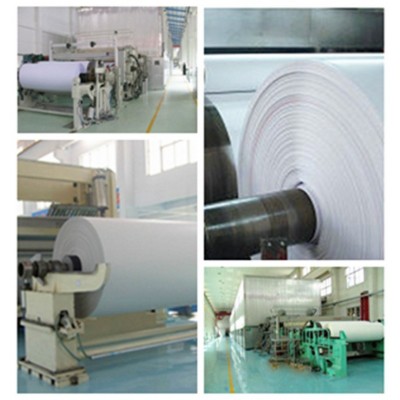

第四部分：纸机主要部件细节图
Part four: Detail pictures of paper making line
机架 (Rack),网笼(Cylinder mold),烘缸 (Dryer),托辊 (pressure roll)等
第五部分：企业简介
Part five: Company profile
国瑞造纸机械设备有限公司专业生产造纸机械和制浆设备，主要产品包括：各种型号高速卫生纸、餐巾纸造纸机、文化纸造纸机、工业包装纸造纸机、中高速迷信纸造纸机以及特种纸造纸机等。在过去的三十多年的生产、销售过程中，我们拥有了一批精良的技术团队，形成了完善的售前服务、售后技术支持和产品质量严格把控的经营管理体系。产品畅销全国18个省，远销越南、蒙古、巴西、乌兹别克斯坦、西非、南非等10多个国家与地区。如果您有任何问题，请随时联系我们，期待与您的合作！
Guo Rui Paper Making Machinery Co., Ltd is specialized in the paper making machines and pulp making equipments.The main items as below:high speed Toilet paper machine,Napkin paper machine,Culture paper
machine,Industrial packaging paper machine,Yellow paper machine and specialty paper machine.During the
past thirty years production and sales,we have owned one excellent R&D department,as well as the good pre-sale service,aftersale technical support and strictly quality control system.Our products has been sold in the most
of the China,as well as the foreign country,such as,Vietnam,Mongolia,West Africa,South Africa,Brazil,
Uzbekistan,etc.Any questions,please feel free to contact us!
010-67896589
